File Operations

Overview

mirrord will relay all file access to the target pod by default. (this functionality can be disabled using --no-fs flag on the command line or by unchecking the appropriate box in the IDE plugin. To enable just read-only access, --ro-fs option.)

For example, the following python script calls the built-in open function which translate to something like openat(AT_FDCWD, "/tmp/test", O_RDWR|O_CLOEXEC) at a lower level:

with open("/tmp/test", "r+") as rw_file:
    read_str = rw_file.read(42)
print(read_str)

When we run that python script with mirrord:

mirrord exec -c --pod-name py-serv-deployment-cfc458fd4-bjzjx python3 test.py

mirrord overrides that openat call and opens /tmp/test on the remote pod.

Currently, the following operations are supported:

  • open
  • openat
  • fopen
  • fdopen
  • read
  • fread
  • fileno
  • lseek
  • write

How does it work?

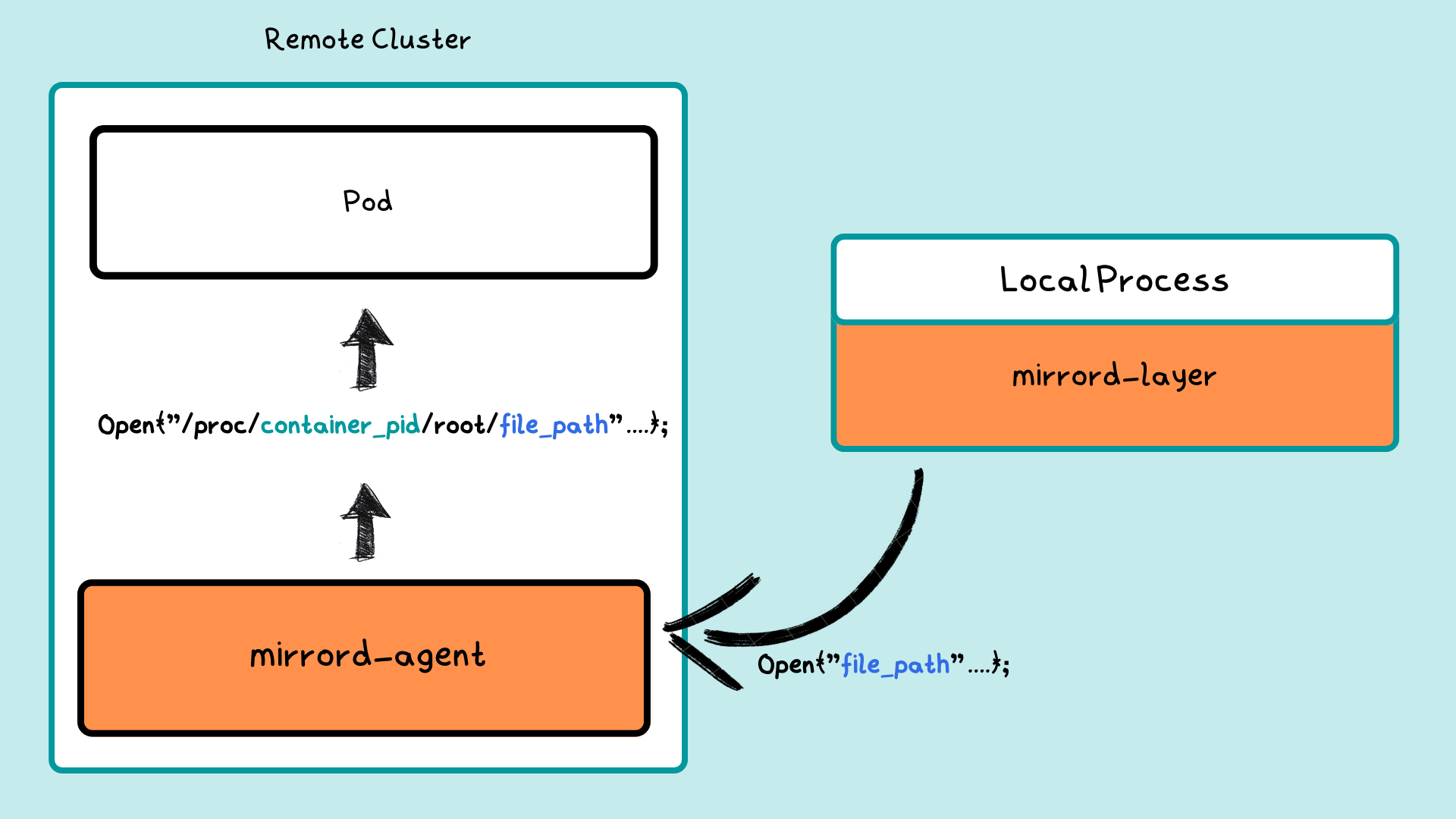

mirrord - fileops

Once a request to open a new file is received by mirrord-agent from mirrord-layer, the agent forwards the request to the container in the remote pod in context of the provided path for the open system call, prefixed with path to the root directory of the container.

mirrord-agent uses APIs provided by docker and containerd runtimes to get the PID of the remote container, and refers to the root directory of the remote container through /proc/container_pid/root

Syscalls

mirrord overrirdes calls to the following libc functions/system calls:

open

int open(const char *pathname, int flags);

Open files on the remote pod. Functionality when opening with different types of paths might differ. In the case when pathname is specified to be a relative path, the call to open is sent to libc instead of the remote pod.

Example:

import os
fd = os.open("/tmp/test", os.O_WRONLY | os.O_CREAT)

openat

int openat(int dirfd, const char *pathname, int flags);

openat works the same as open when dirfd is specified as AT_FDCWD or if the path is absolute. If a valid dirfd is provided, files relative to the directory referred to by the dirfd can be opened.

Example:

dir = os.open("/tmp", os.O_RDONLY | os.O_NONBLOCK | os.O_CLOEXEC | os.O_DIRECTORY)

os.open("test", os.O_RDWR | os.O_NONBLOCK | os.O_CLOEXEC, dir_fd=dir)

read

ssize_t read(int fd, void *buf, size_t count);

Read from a file on the remote pod.

Example:

fd = os.open("/tmp/test, os.O_RDWR | os.O_NONBLOCK | os.O_CLOEXEC)
read = os.read(fd, 1024)

write

ssize_t write(int fd, const void *buf, size_t count);

Write to a file on the remote pod.

Example:

with open("/tmp/test", "w") as file:
    file.write(TEXT)

lseek

off_t lseek(int fd, off_t offset, int whence);

Reposition the file offset of an open file on the remote pod. lseek through mirrord-layer supports all valid options for whence as specified in the Linux manpages.

Example:

with open("/tmp/test", "w") as file:
    file.seek(10)
    file.write(TEXT)

Note: For read, write, and lseek if the provided fd is a valid file descriptor i.e. it refers to a file opened on the remote pod then the call is forwarded to the remote pod, otherwise the call is sent to libc.
