IntelliJ Plugin

If you develop your application in one of the JetBrains’ IDEs (e.g PyCharm, IntelliJ or GoLand), you can debug it with mirrord using our JetBrains Marketplace plugin. Simply:

  1. Download the plugin
  2. Enable mirrord using the toolbar button (next to “mirrord” popup menu)
    Select Active Config action
  3. Run or debug your application as you usually do

When you start a debugging session with mirrord enabled, you’ll be prompted with a target selection dialog. This dialog will allow you to select the target in your Kubernetes cluster that you want to impersonate.

Note: For some projects, the plugin might not be able to present the target selection dialog.

When this happens, you’ll see a warning notification and the execution will be cancelled. You can still use mirrord, but you’ll have to specify the target in mirrord config.

This is known to happen with Java projects using the IntelliJ build system.

The toolbar button enables/disables mirrord for all run and debug sessions.

mirrord’s initial state on startup can be configured in the plugin settings (Settings -> Tools -> mirrord -> Enable mirrord on startup)

Enabling/disabling mirrord for a specific run configuration #

mirrord can be persistently enabled or disabled for a specific run configuration, regardless of the toolbar button state. This is controlled via the MIRRORD_ACTIVE environment variable in your run configuration.

To have mirrord always enabled for the given run configuration, set MIRRORD_ACTIVE=1 in the run configuration’s environment variables. To have mirrord always disabled, set MIRRORD_ACTIVE=0.

Selecting session target #

mirrord’s target can be specified in two ways:

  1. with the target selection dialog

    • The dialog will only appear if the mirrord config does not specify the target.
    • The dialog will only show targets in the namespace specified in the mirrord config (.target.namespace). If the namespace is not specified, your Kubernetes user’s default namespace will be used.
  2. in the mirrord config’s target section

Using the mirrord config #

The plugin allows for using the mirrord config. For any run/debug session, the mirrord config to be used can be specified in multiple ways:

Active config #

The toolbar dropdown menu allows for specifying a temporary mirrord config override. This config will be used for all run/debug sessions.

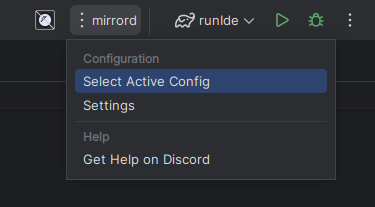

To specify the override, use Select Active Config action.

Select Active Config action

You will be prompted with a dialog where you can select a mirrord config from your project files. For the file to be present in the dialog, its path must contain mirrord and end with either .json, .yaml or .toml.

You can remove the override using the same action.

Config for run configuration #

If no active config is specified, the plugin will try to read the config file path from the MIRRORD_CONFIG_FILE environment variable specified in the run configuration.

This path should be absolute.

Config from default path #

If the config file path is not specified in the run configuration environment, the plugin will try to find a default config.

The default config is the lexicographically first file in <PROJECT ROOT>/.mirrord directory that ends with either .json, .yaml or .toml.

Managing the mirrord binary #

The plugin relies on the standard mirrord CLI binary.

By default, the plugin checks the latest release version and downloads the most up-to-date binary in the background. You can disable this behavior in the plugin settings (Settings -> Tools -> mirrord -> Auto update mirrord binary).

You can also pin the binary version in the plugin settings (Settings -> Tools -> mirrord -> mirrord binary version).

WSL #

The guide on how to use the plugin with remote development on WSL can be found here.
